The SnoreByte® Kit

Patient Kit

SnoreByte® is a temporary or trial oral appliance used for the treatment of snoring and obstructive sleep apnea.
In addition to our high-quality products, BRAEBON offers clients unparalleled aftersales support with industry-leading warranties, technical support and our helpful Rapid Replacement Program. BRAEBON is an ISO 13485 and CE compliant company with an international customer base – our products are used on six continents.

SnoreByte® Composition

The SnoreByte® consists of a clear resilient biocompatible tray filled with GC Reline™, a chairside vinyl polysiloxane (VPS) denture liner that is molded to the patient’s teeth.

SnoreByte® Custom-fit

The SnoreByte® is custom-fit in minutes. After applying the VPS to the tray you fit the oral appliance to the patient’s posterior teeth while the patient protrudes his lower jaw slightly.

SnoreByte® Use

The SnoreByte® creates a slight protrusion and limits the posterior movement of the mandible during sleep. This protrusion helps to maintain an open oropharyngeal airway thus reducing snoring and/or non central obstructive sleep apnea.

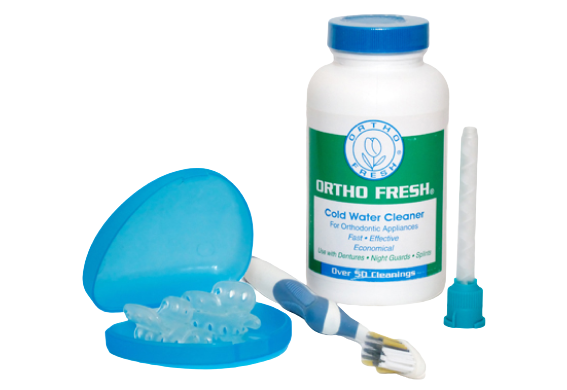

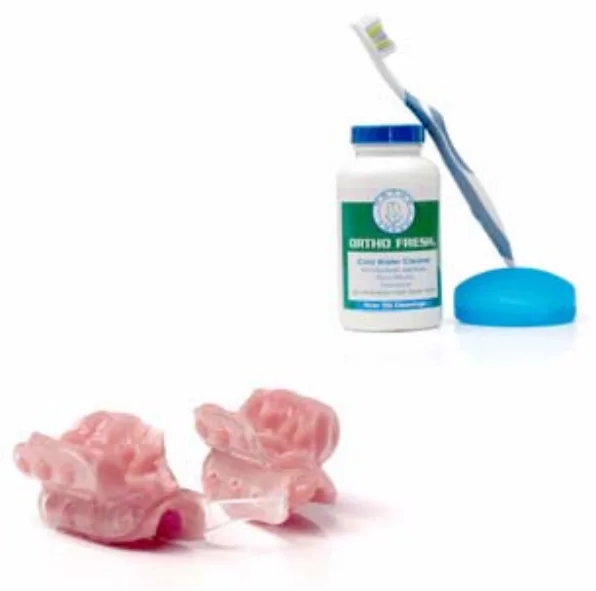

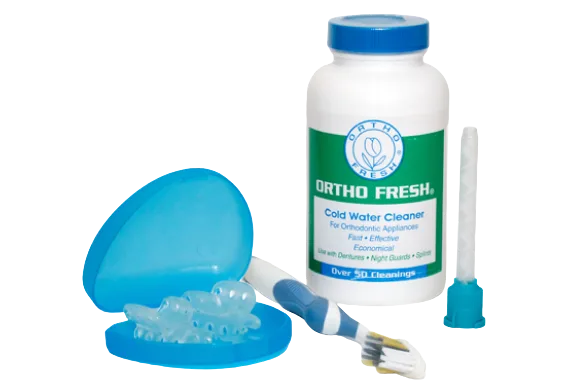

The SnoreByte® Patient Kit includes:

The following items for the preparation of the oral appliance:

The following items for the patient to take home:

Intended use of the Oral Appliance


The oral appliance should not be used where the following is present:


Use of the oral appliance may cause:

Fitting the SnoreByte®

Before prescribing the SnoreByte® consider your patient’s medical history, including history of asthma, breathing or respiratory disorder, or other relevant health problems. Ensure you arrange for appropriate health care before prescribing the oral appliance as a trial or temporary device.

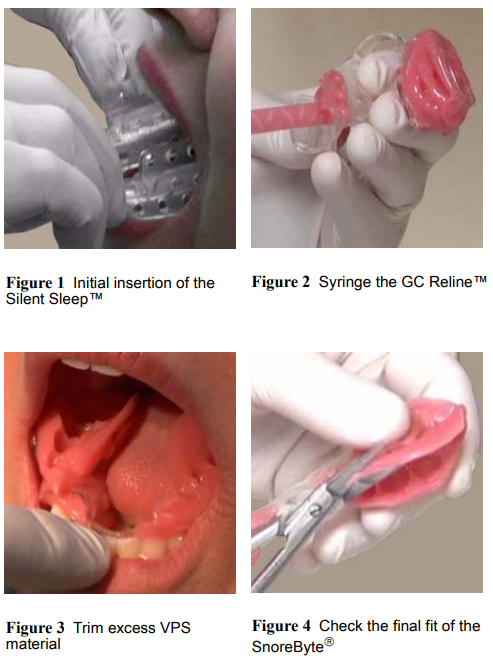

Check the fit of the tray over the patient’s teeth or partial denture. Like an impression tray, the tray should fit over the patient’s posterior teeth without interference or painful contact with the tissues of the mouth. If the borders of the tray are irritating to the patient’s gingiva due to contact, modify the tray as needed (see figure 1).

NOTE : If the tray does not fit the patient’s dental arches or causes discomfort, the Silent Sleep™ should not be used.

With the tray in the patient’s mouth, determine the initial protrusion position using your preferred bite registration method. There are four different bite gauges available, allowing for seven different levels of protrusion.

WARNING : Excessive protrusion of the mandible is NOT necessary and is NOT recommended.

Insert the GC Reline™ denture material into the tray. Ensure the material is well through the retention holes of the tray (see Figure 2).
Once the tray is filled, place the tray in the patient’s mouth, guiding the lower portion onto the mandibular teeth (see Figure 3).
Guide the patient’s bite to the predetermined position. Allow the material to set, for the amount of time recommended by the RC Reline manufacture.

NOTE : Blocking out significant undercuts or under bridges is generally not necessary due to
the soft nature of the set VPS; however, this should also be considered.

Once the GC Reline™ material is fully set, remove the appliance from the patient’s mouth. Trim excessive material, if necessary (see Figure 4).
Seat the oral appliance and allow the patient to wear it for several minutes.
If the patient feels significant pressure in the jaw from excessive protrusion, remove the material from the tray and repeat steps 3 to 4 with the patient bringing the jaw into a more comfortable position.
Reposition the appliance as needed:
